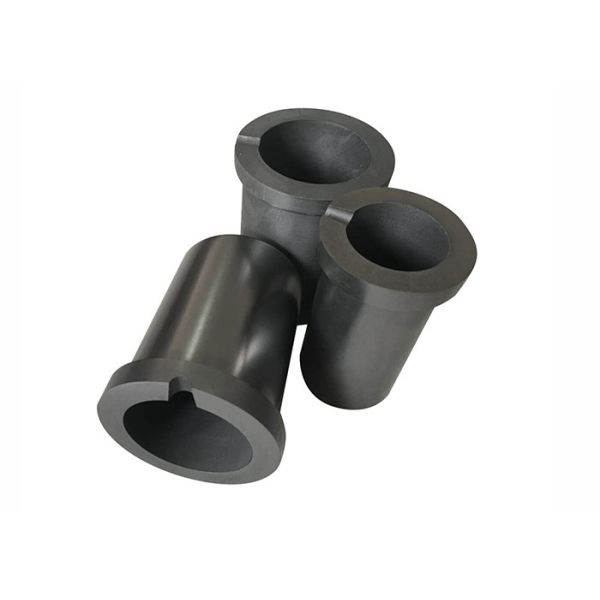

1500C Quartz Graphite Crucible For Gold Melting Lab Testing
Application of density quartz crucible:
Industrial alumina ceramic crucible is used for testing laboratory and a variety of industrial analysis.
Alumina ceramic crucible
include: arc alumina crucible, square alumina crucible, rectangle alumina ceramic crucible,
column ceramic crucible.
Application of density quartz crucible:
1.high purity Al2O3 >99%.
2.Superior refractoriness.
3.High mechanical strength.
4.Long life time.
5. High chemical etching resistance.
6. High temperature up to 1800°C
7. Resistant to sudden cold and hot, un-explosive.
8. High density of slip casting.
9. Various kinds of shape.
Alumina ceramic crucible feature
1. Corundum crucible is suitable for melting samples with anhydrous Na2CO3 and other weak alkaline substances as flux, but not suitable for melting samples with Na2O2, NaOH and other strong alkaline substances and acidic substances as flux (such as K2S2O7 and so on)
2. Resistance to high temperature, acid and alkali, cold and hot, chemical corrosion
3. The color is white or beige
Technical parameter of alumina ceramic crucible:
| Item | | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 |
| Physical Characteristics | Heat resistance | 0C | 1500 | 1550 | 1800 |
| | Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
| | Water absorption | % | 0 | 0 | 0 |
Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| | Hardness vickers | Gpa | 12.2 | 13.5 | 15.6 |
| | Elastic modulus | Gpa | 280 | 320 | 370 |
| | Poisson’s ratio | | 0.22 | 0.23 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| | Thermal conductivity | w/(m.k) | 16 | 24 | 32 |
| | Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| | Dielectric loss angle | *10-4 | 15 | 5 | 1 |
| | Dielectric strength | *106V/m | 12 | 15 | 15 |
| Process range (mm) |
| Outside Diameter | 1---300 |
| Inside Diameter | 0.5---300 |
| Length | 0.5---1200 |
Standard models of SUPER quartz crucible:
| Model | Outer diameter | Inner diameter | Total height |
| C01 | 145mm | 83mm | 293mm |
| C02 | 335mm | 265mm | 300mm |
| C03 | 318mm | 267mm | 410mm |
| C04 | 510mm | 450mm | 610mm |
Our after service :
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
7. Check quality of items one by one
8. Provide packing photos and tracking number
9. tracking parcel for you.
